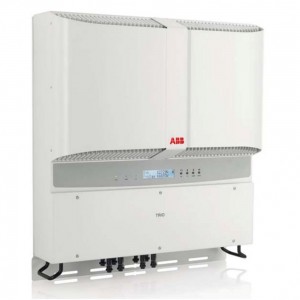

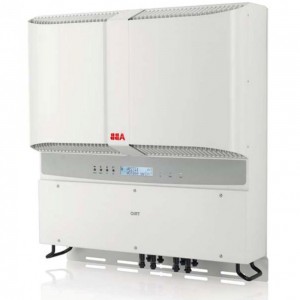

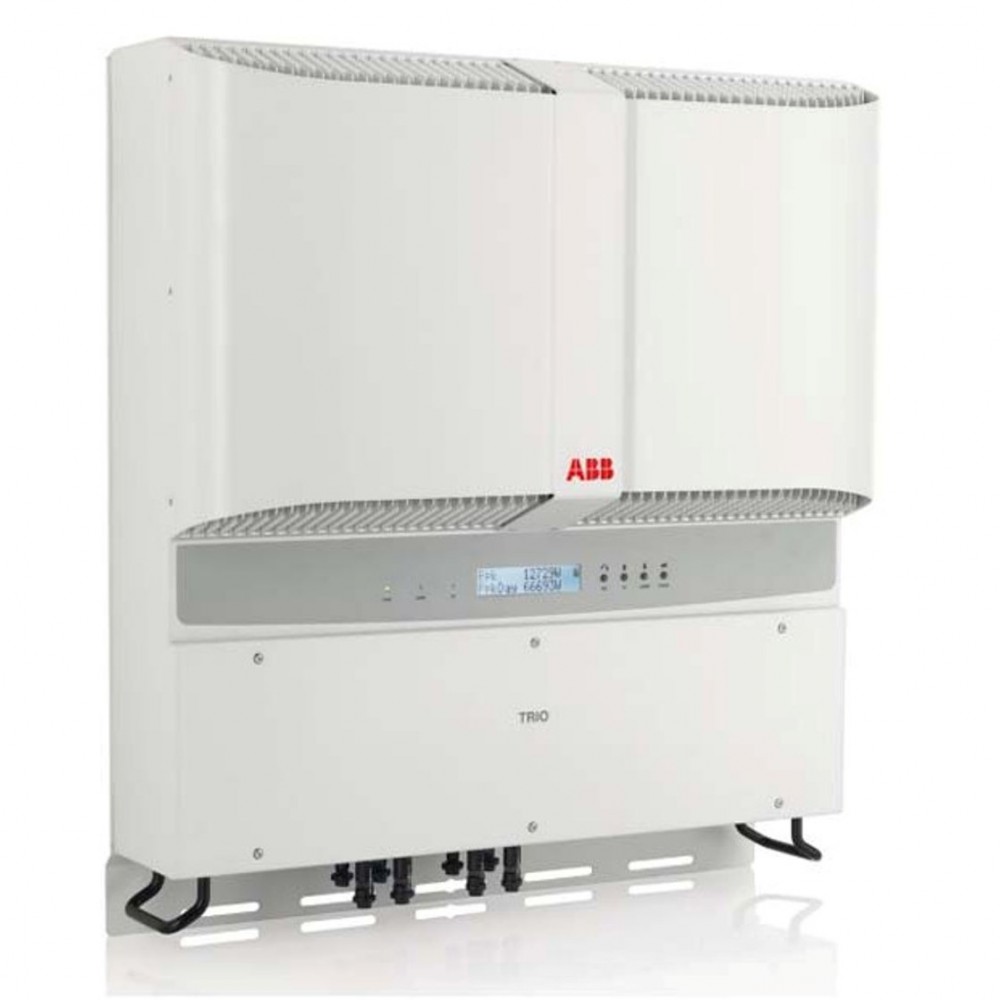

ABB string inverters PVI-10.0/12.5-TL
The high speed and precise Maximum Power Point Tracking (MPPT) algorithm provides real-time power tracking and improved energy harvesting.
Two independent MPPTs and efficiency ratings up to 97.8% This transformerless device has two independent MPPTs and efficiency ratings of up to 97.8%.
Flat efficiency curves ensure high efficiency at all output levels ensuring consistent and stable performance across the entire input voltage and output power range.
The wide input voltage range makes the inverter suitable for low power installations with reduced string size.
Highlights
- True three-phase bridge topology for DC/AC output converter
- Transformerless topology
- Each inverter is set on specific grid codes which can be selected in the field
- Wide input voltage range
- Dual input section with independent
MPPT allows optimal energy harvesting from two sub-arrays oriented in different directions 2 ABB solar inverters | Product flyer for PVI-10.0/12.5-TL-OUTD
Additional highlights
- Integrated DC disconnect switch in compliance with international standards (-S and -FS versions)
- Natural convection cooling for maximum reliability
- Outdoor enclosure for unrestricted use under any environmental conditions
- RS-485 communication interface (for connection to laptop or datalogger)
Especificaciones técnicas
| Type code | PVI-10.0-TL-OUTD | PVI-12.5-TL-OUTD |
|---|---|---|
| Input data | ||
| Absolute maximum DC input voltage (Vmax,abs) | 900 V | = |
| Start-up DC input voltage (Vstart) | 360 V (adj. 250...500 V) | = |
| Operating DC input voltage range (Vdcmin...Vdcmax) | 0.7 x Vstart…850 V (min 200 V) | = |
| Rated DC input voltage (Vdcr) | 580 V | = |
| Rated DC input power (Pdcr) | 10300 W | 12800 W |
| Number of independent MPPT | 2 | = |
| Maximum DC input power for each MPPT (PMPPTmax) | 6500 W | 8000 W |
| Input protection | ||
| Reverse polarity protection | Inverter protection only, from limited current source | = |
| Input over voltage protection for each MPPT - varistor | Yes | = |
| Photovoltaic array isolation control | According to local standard | = |
| DC switch rating for each MPPT (version with DC switch) | 25 A / 1000 V | = |
| Fuse rating (versions with fuses) | 15 A / 1000 V | = |
