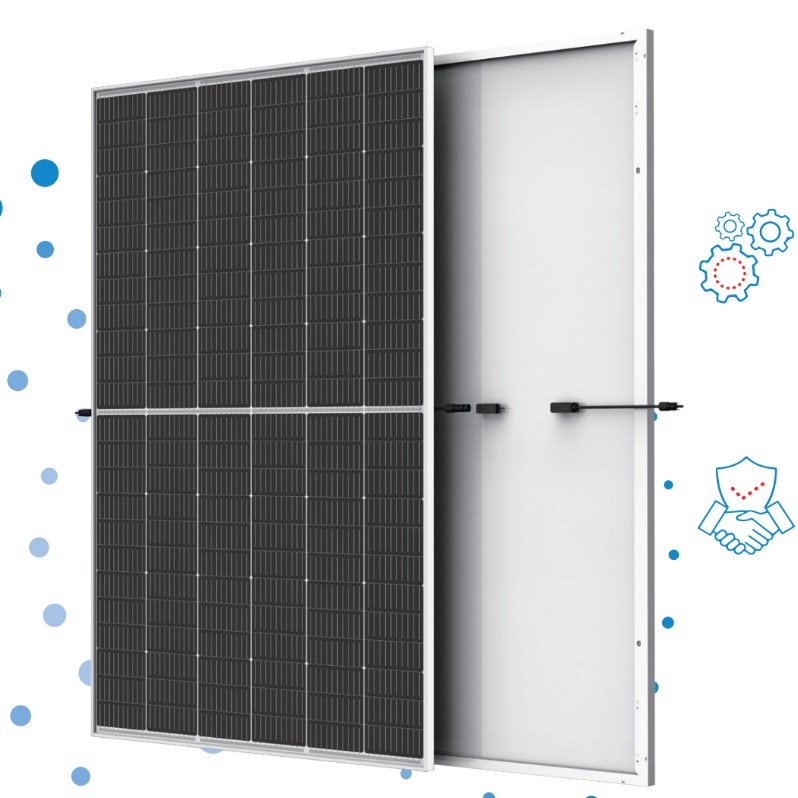

Datasheet 210R DE09R

PRODUCT RANGE: 415-435W POSITIVE POWER TOLERANCE: 0~+5W MAXIMUM EFFICIENCY: 21.8%

Small in size, big on power: • Small form factor. Generate a huge amount of energy even in limited space. • Up to 435W, 21.8% module efficiency with high density interconnect technology • Multi-busbar technology for better light trapping effect, lower series resistance and improved current collection • Reduce installation cost with higher power bin and efficieny • Boost performance in warm weather lower temperature coefficient (-0.34%) and operating temperature

Universal solution for residential and C&I rooftops • Designed for compatibility with existing mainstream optimizers, inverters and mounting systems • Perfect size and low weight. Easy for handling. Economy for transporting • Diverse installation solutions. Flexible for system deployment

High Reliability • 12 year product warranty • 25 year performance warranty with lowest degradation; • Minimized micro-cracks with innovative non-destructive cutting technology • Ensured PID resistance through cell process and module material control • Mechanical performance up to 6000 Pa positive load and 4000 Pa negative load

WARRANTY

12 year Product Workmanship Warranty
25 year Power Warranty
2% first year degradation
0.55% Annual Power Attenuation

Especificaciones técnicas

ELECTRICAL DATA (STC)

Peak Power Watts-PMAX (Wp)*: 415, 420, 425, 430, 435
Power Tolerance-PMAX (W): 0 ~ +5
Maximum Power Voltage-VMPP (V): 41.7, 42.0, 42.2, 42.3, 42.5
Maximum Power Current-IMPP (A): 9.94, 10.01, 10.08, 10.17, 10.24
Open Circuit Voltage-VOC (V): 50.0, 50.1, 50.2, 50.3, 50.4
Short Circuit Current-ISC (A): 10.55, 10.58, 10.61, 10.64, 10.67
Module efficiency η m (%): 20.8, 21.0, 21.3, 21.5, 21.8

ELECTRICAL DATA (NOCT)

Maximum Power-PMAX (Wp): 312, 317, 321, 325, 329
Maximum Power Voltage-VMPP (V): 38.7, 39.2, 39.5, 39.7, 40.0
Maximum Power Current-IMPP (A): 8.07, 8.10, 8.13, 8.17, 8.23
Open Circuit Voltage-VOC (V): 47.1, 47.1, 47.2, 47.4, 47.5
Short Circuit Current-ISC (A): 8.50, 8.53, 8.55, 8.60, 8.65

MECHANICAL DATA

Solar Cells: Monocrystalline
No. of cells: 144 cells
Module Dimensions: 1762×1134×30 mm (69.37×44.65×1.18 inches)
Weight: 21.6 kg (47.6 lb)
Glass: 3.2 mm (0.13 inches), High Transmission, Tempered Glass
Encapsulant material: EVA/POE
Backsheet: White
Frame: 30mm(1.18 inches) Anodized Aluminium Alloy
J-Box: IP 68 rated
Cables: Photovoltaic Technology Cable 4.0mm2 (0.006 inches2), Portrait: 350/280 mm(13.78/11.02 inches), Length can be customized
Connector: MC4 EVO2 / TS4 Plus/ TS4*

TEMPERATURE RATINGS

NOCT(Nominal Operating Cell Temperature): 43°C (±2°C)
Temperature Coefficien of Pmax: -0.34%/°C
Temperature Coefficiente of voc: -0.25%/°C
Temperature C oefficient of Isc: 0.04%/°C

MAXIMUM RATINGS

Operational Temperature: -40~+85oC
Maximum System Voltage: 1500V DC (IEC)
Max Series Fuse Rating: 20A
