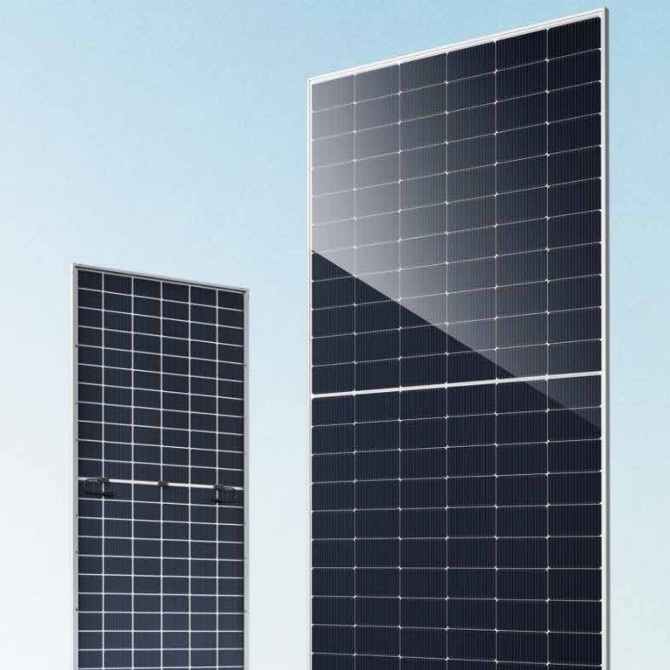

JA-Solar n-type Double Glass Bifacial Modules - 620W
● Premium Cells: MBB Half-Cell Technology and uo to 26% of cell conversion Efficiency
●Premium Modules:
- Higther power generaion better LCOE
- N-type with very lower LID
- Better Temperature Coefficient
-Better low irradience responce
● ELECTRICAL PARAMETERS AT STC
- Rated Maximum Power (Pmax) [W]: 620
- Open Circuit Voltage (Voc) M: 48.50
- Maximum Power Voltage (Vmp) [V]: 40.21
- Short Circuit Current (ISC)[A] : 16.13
- Maximum Power Current (Imp) [A]: 15.42
- Module Efficiency [%]: 23.0
- Power Tolerance: 0 ~ +3%
- Temperature Coefficient of Isc/α_Isc): +0.045%/°C
- Temperature Coefficient of Voc (β_Voc): -0.250%/°C
- Temperature Coefficient of Pmax (y_Pmp): -0.290%/°C
- STC: Irradiance 1000W/m², cell temperature 25°C, AM1.4G
Especificaciones técnicas
● ELECTRICAL CHARACTERISTICS WITH 10% SOLAR IRRADIATION RATIO
- Rated Max Power (Pmax) [W]: 670
- Open Ciruit Voltage (Voc) [V]: 48.50
- Max Power Voltage (Vmp) [V]: 40.21
- Short Circuit Current (Isc) [A]: 17.42
- Max Power Current (Imp) [A]: 16.65
- Irradiation Ratio (Rear/front): 10%
● OPERATING CONDITIONS
- Maximum System Voltage: 1500V DC
- Operating Temperature: -40°C~+85°C
- Maximum Series FUse Rating: 35A
- Maximum Sratic Load, Front*: 5400Pa(112lb/ft²)
- Maximum Static Load, Back*:2400Pa(50lb/ft²)
- NOCT: 45±2°C
- Bifaciality**: 80%±10%
- Safety Class: Class II
- Fire Perfonamnce: UL Type 29/Class C
