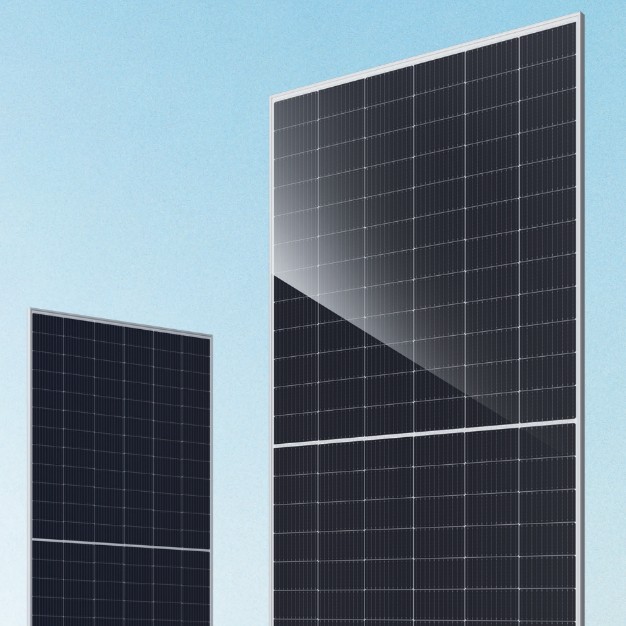

PANEL SOLAR FOTOVOLTAICO -JAM72S30 LR 585W
P-type MOnofacial Modules
Premium Modules
- Higher output power
- Les shadig and lower resistive loss
- Lower LCOE
- Better mechanical oading tolerance
Comprehensive Certificates
- IEC 61215, IEC 61730, UL 612215, UL 61730
- ISO 9001: 2015 Quality managment system
- ISO 45001: 2018 Occupational health and safetyy managment systems
- IEC 62941: 2019 Terrestrial photovoltaic (PV) modules - Quality system for PV module manufacturing
Especificaciones técnicas
MECHANICAL PARAMETERS
- Cell: Mono
- Weight: 28kg
- Dimensions: 2333±2mmX1134±2mmX30±1mm
- Cable Cross Section Size: 4mm²(IEC), 12AWG(UL)
- No. of cells: 144(6X24) -Junction Box: IP68, 3diodes -Connector: QC 4.10 - 351/MC4 - EVO2A
- Cable Length (Including Connector): Portrait: 300mm(+)/400mm(-), Landscape: 1400mm(+)/1400mm(-)
- Front Glass: 32mm
- Packaging Configuration: 36pcs/Pallet, 720pcs/40HQ Containes
ELECTRICAL PARAMETERS AT STC
- Reated Maximum Power (Pmax) W: 585
- Open Circuit Voltage (Voc) V: 51.22
- Maximum Power Voltage (Vmp) V: 42.42
- Short Circuit Current (Imp) A: 14.56 -Maximum Power Current (Imp) A: 13.79 -Module Efficiency(%): 22.1 -Power Tolerance: 0 ~ +3% -Temperature Coefficient of Isc: +0.045%/°C -Temperature Coefficient of Voc: -0.275%/°C
- Temperature Coefficient of Pmax: -0.350%/°C
ELECTRICAL PARAMETERS AT NOCT
- Rated Max Power (Pmax): 443
- Open Circuit Voltage(Voc): 48.74
- Max Power Voltage (Vmp): 40.14
- Short Circuit Current (Isc): 11.65
- Max Power Current (Imp): 11.03
OPERATING CONDITIONS
- Maximum System Voltage: 1000V/1500V DC
- Operating Temperature: -40°C ~85°C
- Maximum Series Fuse Rating: 25A
- Maximum Static Load, Front: 5400Pa(112lb/ft²)
- Maximum Static Load, Back: 2400Pa(59lb/ft²) -NOCT: 45±2°C -Safety Class: Class II
- Fire Performance: UL Type 1/Class C
