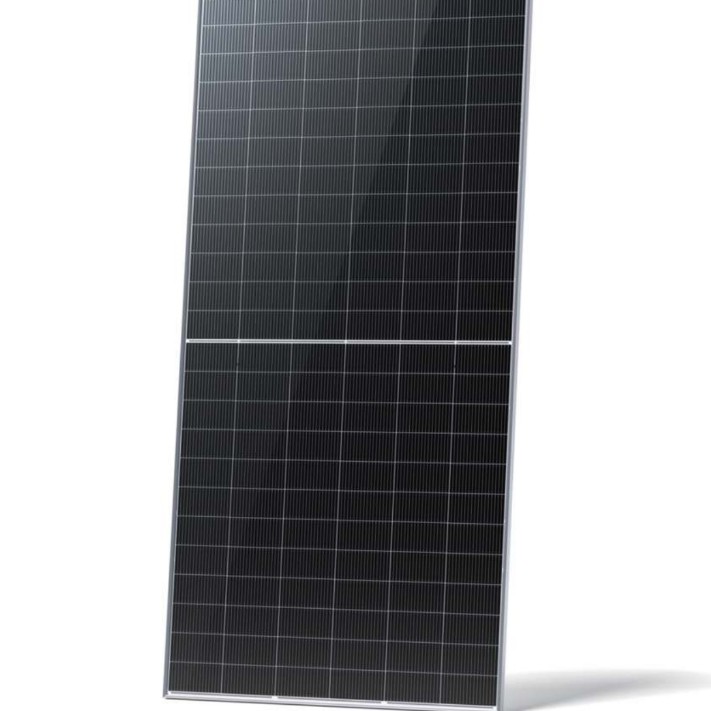

Tiger Neo 570-590 Watt MONO-FACIAL MODULE
570-590 Watt
MONO-FACIAL MODULE
N-type
- N-type Technology: N-type modules with Tunnel Oxide, Passivating Contacts (TOPCon) technology offer lower LID/LeTID degradation and better low light performance.
- HOT 2.0 Technology: N-type modules with JinkoSolar's HOT 2.0m technology offer better reliability and efficiency.
- Durability Aggainst Extreme Enviroment: High salt mist and ammonia resistance.
- Mechanical Load Enhanced: Certified to withstand: 5400 Pa front side max static test load, 2400 Pa rear side max static test load
- SMBB Technology: Better light trapping and current collection to improve module power output and reliability.
- Anti-PID Guarantee: Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control.
Especificaciones técnicas
Mechanical Characteristics
- Cell Type: N-Type Mono-crystalline
- No. of cells: 144 (72x2)
- Dimensions: 2278x1134x30mm
- Weight 27,0 Kg
- Front Glass: 3,2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
- Frame: Anodized Aluminium Alloy
- Junction Box: IO68 Rated Protecction Class: Class II
- IEC Fire Type: Class C
- Output Cables: 4.0mm² (+): 400mm, (-): 200mm or Customized Length
Specifications (STC)
- Maximym Power - Pmax (Wp): 570, 575, 580, 585, 590
- Maximum Power Voltage- Vmp (V): 42.99, 43.17, 43.35, 43.53, 43.71
- Maximum Power Current - Imp (A): 13.26, 13.32, 13.38, 23.44, 13.50
- Open-Circuit Coltage- Voc (V): 51.99, 52.15, 52.31, 52.47, 52.63
- Sort-Circuit Current - Isc (A): 13.89, 13.95, 14.01, 14.97, 14.13
- Module Efficiency STC (%): 22.07, 22.26, 22.45, 22.65, 22.84
- Power Tolerance: 0 ~ + 3%
- Temperature Coefficients of Pmax: -0.29%/°C
- Temperature Coefficiente of Voc: -0.25%/°C
- Temperature Coefficients of Isc: 0.045%/°C
Specifications (NOTC)
- Maximum Power - Pmax (Wp): 430, 433, 437, 441, 445
- Maximum Power Voltage - Vmp (V): 40.31, 40.54, 40.70, 40.86, 41-05
- Maximum Power Current - Imp (A): 10.64, 10.69, 10.74, 10.79, 10.83
- Open -Circuit Voltage - Voc (V): 49.38, 49.54, 49.69, 49.84, 49.99
- Short - circuit Current - Isc (A): 11.21, 11.26, 11.31, 11.36, 11.41
