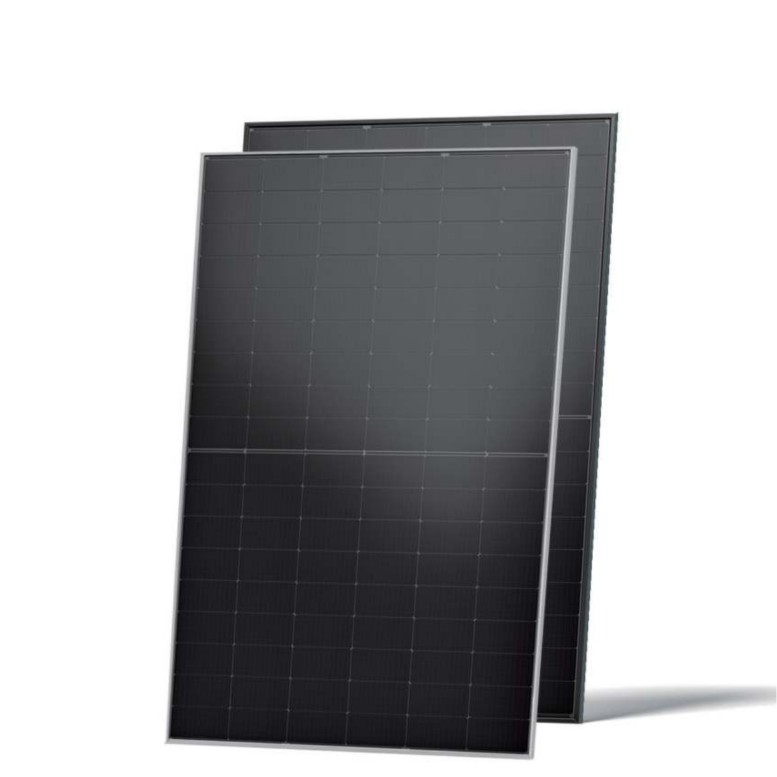

Tiger Neo 430-450 Watt Mono-facial Module
430-450 Watt MONO-FACIAL MODULE
- N-type Technology: N-type modules with Tunnel Oxide Passivating Contacts (TOPCon) technology offer lower LID/LeTID degradation and better low light performance.
- HOT 2.0 Technology: N-type modules with JinkoSolar's HOT 2.0 technology offer better reliability and efficiency.
- Durability against extreme enviroment: High salt mist and ammonia resistance.
- Mechanical Load Enhanced: Certified to withstand: 6000 Pa front side max static test load, 4000 Pa rear side max static test load
- SMBB Technology: Better light trapping and current collection to improve module power output and reliability.
- Anti-PID Guarantee: Minimizes the chance of degradation caused by PID phenomena through optimization of cell production thecnology and material control
● Mechanical Characteristics
- Cell type : N-type mono-crystalline
- No. of cells: 108 (54x2)
- Dimensions: 1762 x 1134 x 30mm
- Weight: 21.0kg
- Front Glass: 3.2mm, Anti-Reflection Coating, High transmission, Low Iron, Tempered Glass
- Frame: Anodized Aluminium Alloy
- Junction Box: IP68 Rated
- Protection Class: Clas II
- IEC Fire Type: Class C
- Output cables: 4.0mm² (+): 400mm, (-): 200mm or Customized Length
● Packaging Configuration
- Pallet Dimensions: 1792 x 1140 x 1249mm
- Packing detail (Two pallets = One stack)
Especificaciones técnicas
● Specification (NOTC)
- Maximum Power - Pmax (Wp): 323, 327, 331, 335, 338
- Maximum Power Voltage - Vmp (V): 30.10, 30.33, 30.56, 30.76, 30.90
- Maximum Power Current - Imp (A): 10.73, 10.78, 10.83, 10.89, 10.94
- Open-circuit Voltage - Voc (V): 37.00, 37.20, 37.41, 37.61, 37.79
- Short-circuit Current - Isc (A): 11.09, 11.14, 11.19, 11.25, 11.30
● Application Conditions
- Operating Temperature: -40°C ~ +85°C
- Maximum system voltage: 1000/1500 VDC (IEC)
- Maximum series fuse rating: 24A
- Nominal operating cell temperature - NOCT: 45 ± 2°C
