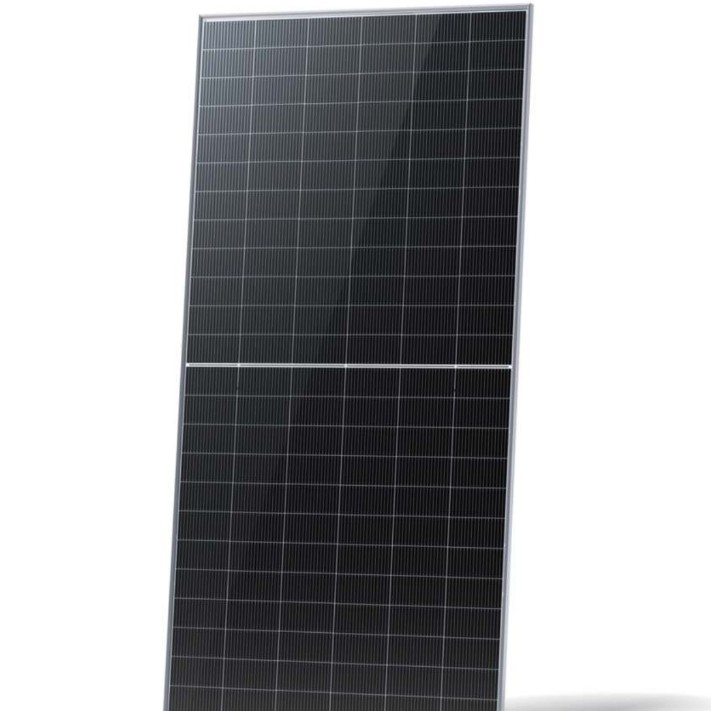

Tiger Neo 605-630 Watt BIFACIAL MODULE WITH DUAL GLASS
605-630 Watt
BIFACIAL MODULE WITH DUAL GLASS
N-type
- N-Type Technology: N-Type modules with Tunnel Oxide Passivating Contacts (TOPcon) technology offer lower LID/LeTID degradation and better low light performance.
- HOT 3.0 Technology: N-type modules with JinkoSolar's HOT 3.0 technology offer better reliability and efficiency.
- Dual-Sided Power Generation: Dual-sided power generation gain increases with backside exposure to light, significantly reducing LCOE.
- Mechanical Load Enhanced: Certified to withstand: 5400 Pa front side max static test load 2400 Pa rear side max static test load
- SMBB Technology: Better light trapping and current collection to improve module power output and reliability.
- Anti-PID Guarantee: Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control.
Especificaciones técnicas
Mechanical Characteristics:
- Cell Type: N-type Mono-crystalline
- No. of cells: 132 (66x2)
- Dimensions: 2382x1134x30mm
- Weight: 32.4Kg
- Front Glass: 2.0 mm, Anti- reflexion Coating
- Back Glass: 2.0mm, Heat Strengthned Glass
- Frame: Anodized Aluminum Alloy
- Juncion Box: IP68 Rated
- Protection Class: Class II
- IEC Fire Type: Class C
- Conector Type: JK03M/MC4/Others
- Output Cables: 4.0 mm² (+): 400mm, (-): 300mm or Cutomized Lenght
Specifications (STC)
- Maximum Power - P max (Wp): 605, 610, 615, 620, 625, 630
- Maximum Power Voltage - Vmp (V): 40.31, 40.46, 40.60, 40.74, 40.88, 41.01
- Maximum Power Current - Imp (A): 15.01, 15.08, 15.15, 15.22, 15.29, 15.36
- Open-Circuit Voltage - Voc (V): 48.48, 48.68, 48.88, 49.08, 49.48
- Short-Circuit Current - Isc (A): 15.90, 15.96, 16.02, 16.08, 16.14, 16.32
- Module Efficiency STC (%): 22.40, 22.58, 22.77, 22.95, 23.14, 23.32
- Power Tolerance: 0 ~ + 3%
- Temperature Coefficients pf Pmax: -0.29%/°C
- Temperature Coefficiente of Voc: -0.25%/°C
- Temperature Coefficients of Isc: 0.045%/°C
Specifications (BNPI)
- Maximum Power - P max (Wp): 668, 674, 679, 685, 690, 696
- Maximum Power Voltage - Vmp (V): 49.29, 40.46, 40.59, 40.75, 40.88, 41.04
- Maximum Power Current - Imp (A): 16.58, 16.66, 16.73, 16.81, 16.88, 16.95
- Open Circuit Voltage - Voc (V): 48.46, 48.66, 48.86, 49.06, 49.26, 49.46
- Short Cirtuit Current - Isc (A): 17.56, 17.64, 17.70, 17.77, 17.83, 17.90
