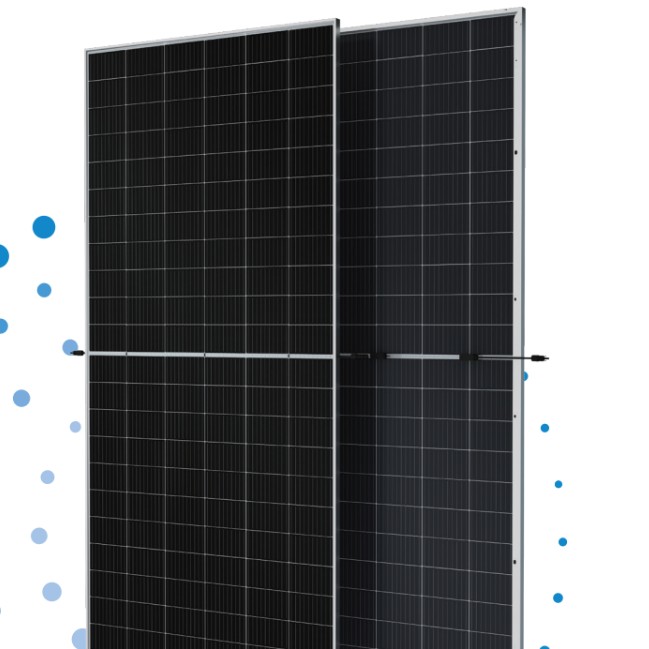

Vertex Bifacial Dual Glass - 560-580 Watt
580W Maximum Power Output
0~+5W Positive Tolerance
21.5% Maximum Efficiency
Product Range: 560-580W
● High customer value
- Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time
- Lower rst year and annual degradation
- Designed for compatibility with existing mainstream system components
- Higher return on Investment
● High power up to 580W
- Up to 21.5% module eciency with high density interconnect technology
- Multi-busbar technology for better light trapping eect, lower series resistance and improved current collection
● High reliability
- Minimized micro-cracks with innovative non-destructive cutting technology
- Ensured PID resistance through cell process and module material control
- Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas
- Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load
● High energy yield
- Excellent IAM (Incident Angle Modier) and low irradiation performance, validated by 3rd party certications
- The unique design provides optimized energy production under inter-row shading conditions
- Lower temperature coecient (-0.34%) and operating temperature
- Up to 25% additional power gain from back side depending on albedo
Especificaciones técnicas
● ELECTRICAL DATA (STC)
- Peak Power Watts-PMAX (Wp)*: 560, 565, 570, 575, 580
- Power Tolerance-PMAX (W): 0 ~ +5
- Maximum Power Voltage-VMPP (V): 37.9, 38.2, 38.4, 38.7, 38.9
- Maximum Power Current-IMPP (A): 14.76, 14.80, 14.84, 14.87, 14.91 -Open Circuit Voltage-VOC (V) : 45.2, 45.5, 45.7, 46.0, 46.2
- Short Circuit Current-ISC (A): 15.86, 15.90, 15.93, 15.97, 16.01
- Module Eciency η m (%): 20.7, 20.9, 21.1, 21.3, 2.5
● ELECTRICAL DATA (NOCT)
- Maximum Power-PMAX (Wp): 424, 428, 431, 436, 439
- Maximum Power Voltage-VMPP (V): 34.9, 35.2, 35.4, 35.7, 35.8
- Maximum Power Current-IMPP (A): 12.12, 12.15, 12.18, 12.22, 12.25
- Open Circuit Voltage-VOC (V): 42.6, 42.8, 43.0,43.3, 43.5
- Short Circuit Current-ISC (A): 12.78, 12.81, 12.84, 12.87, 12.90
● MECHANICAL DATA
- Solar Cells: Monocrystalline
- No of cells: 132 cells
- Module Dimensions: 2384×1134×30 mm (93.86×44.65×1.18 inches)
- Weight: 33.7 kg (74.3 lb)
- Front Glass: 2.0 mm (0.08 inches), High Transmission, AR Coated Heat Strengthened Glass
- Encapsulant material: EVA/POE
- Frame: 30mm(1.18 inches) Anodized Aluminium Alloy
- J-Box: IP 68 rated
- Cables: Photovoltaic Technology Cable 4.0mm2 (0.006 inches2), Portrait: 350/280 mm(13.78/11.02 inches), Length can be customized
- Connector: MC4 EVO2 / TS4 Plus/ TS4*
● TEMPERATURE RATINGS
- NOCT(Nominal Operating Cell Temperature): 43°C (±2°C)
- Temperature Coecient of PMAX: - 0.34%/°C
- Temperature Coecient of VOC: - 0.25%/°C
- Temperature Coecient of ISC: 0.04%/°C
● MAXIMUM RATINGS
- Operational Temperature: -40~+85oC
- Maximum System Voltage: 1500V DC (IEC)
- Max Series Fuse Rating: 35A
● WARRANTY
- 12 year Product Workmanship Warranty
- 30 year Power Warranty
- 2% rst year degradation
- 0.45% Annual Power Attenuation
● PACKAGING CONFIGURATION
- Modules per box: 36 pieces
- Modules per 40’ container: 720 pieces
